This project aimed to analyse patient data to identify key risk factors for cardiovascular disease and develop a predictive model for assessment. Diagnosis of cardiovascular risk can be made easier and smoother, albeit the predictions still require professionals’ insights. Nonetheless, machine learning can help doctors and researchers to learn and uncover unsuspected correlations and new trends, allowing them to make informed decisions.
Cardiovascular diseases are one of the most significant health challenges worldwide, contributing to millions of death each year. Early detection and accurate prediction of cardiovascular risk in an individual can save that individual from costs of treatment, pain, and stress, leading to an overall healthier and happier life.
Data Source
The dataset includes patient information such as age, gender, lifestyle factors, health metrics, and demographic profile.
Gender
Age
Height(cm)
Weight(kg)
Family_history
Alcohol
Junk_food
Vege_day
Meals_day
Snack
Smoking
Water_intake(L)
Transportation
Exercise
TV
Income
Discipline
Cardiovascular_risk
Female
42
172.2
82.9
no
low
yes
3
3
Sometimes
no
2.72
car
3
rare
2081
no
medium
Female
19
175.3
80
yes
none
yes
2
1
Sometimes
no
2.65
bus
3
moderate
5551
no
medium
Female
43
158.3
81.9
yes
none
yes
3
1
Sometimes
no
1.89
car
1
rare
14046
no
high
Female
23
165
70
yes
low
no
2
1
Sometimes
no
2
bus
0
rare
9451
no
medium
Male
23
169
75
yes
low
yes
3
3
Sometimes
no
2.82
bus
1
often
17857
no
medium
Male
23
172
82
yes
low
yes
2
1
Sometimes
no
1
bus
1
moderate
3114
no
medium
Female
21
172
133.9
yes
low
yes
3
3
Sometimes
no
2.42
bus
2
moderate
8011
no
high
Male
21
172.5
82.3
yes
low
yes
2
2
Sometimes
no
2
bus
2
moderate
5838
no
medium
Female
19
165
82
yes
none
yes
3
3
Sometimes
no
1
bus
0
moderate
10029
no
high
Exploratory Data Analysis
WARNING
I don’t have much information over the dataset other than the data, so most of the analysis are speculations.
The dataset has 17 features, 1 label and 2100 rows:
row, column = cardio_df.shapeprint(f"The number of rows: {row}\nThe number of columns: {column}\n")cardio_df.info()
Before moving on to analysing and visualizing the dataset, it is important to extract relevant features first.
Those are:
gender
age
height(cm)
weight(kg)
family_history
alcohol
junk_food
snack
smoking
transportation
exercise
tv
discipline
Height and weight will be combined to become BMI as, individually, doesn’t give much information.
These features have a more direct relationships with
cardiovascular risks compared to vege_day, meals_day, water_intake(L), and income. The meaning of the values in vege_day is ambiguous and do not synchronise with the values in meals_day. The volume of water intake does influence the risk of cardiovascular disease but, its relationship with cardiovascular risk is often indirect and influenced by other factors.
Income is also ignored as we have features such as junk food, smoking, exercise, and TV that can serve as proxies for socio-economic status.
Univariate Analysis

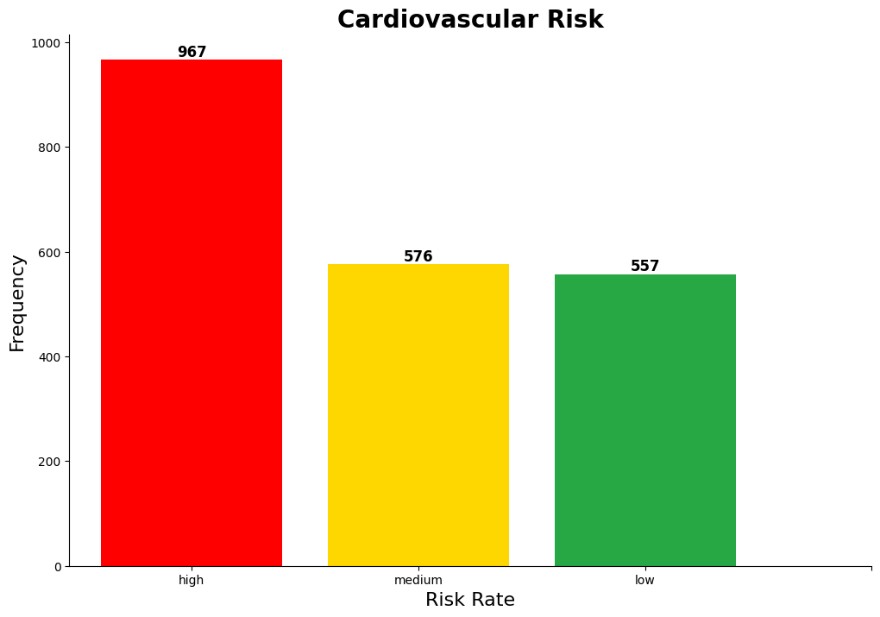

Cardiovascular Risk
Most individuals in the dataset — 967 — are at high risk of developing cardiovascular diseases. The distribution of individuals with low and medium cardiovascular risk is relatively even, with minor differences.
This could indicate that the population is, overall, rather unhealthy. However, the sample size of 2,100 may be too small to represent the general population.
This could also suggest that the sample was collected from a region where sedentary or unhealthy lifestyles are more prevalent.

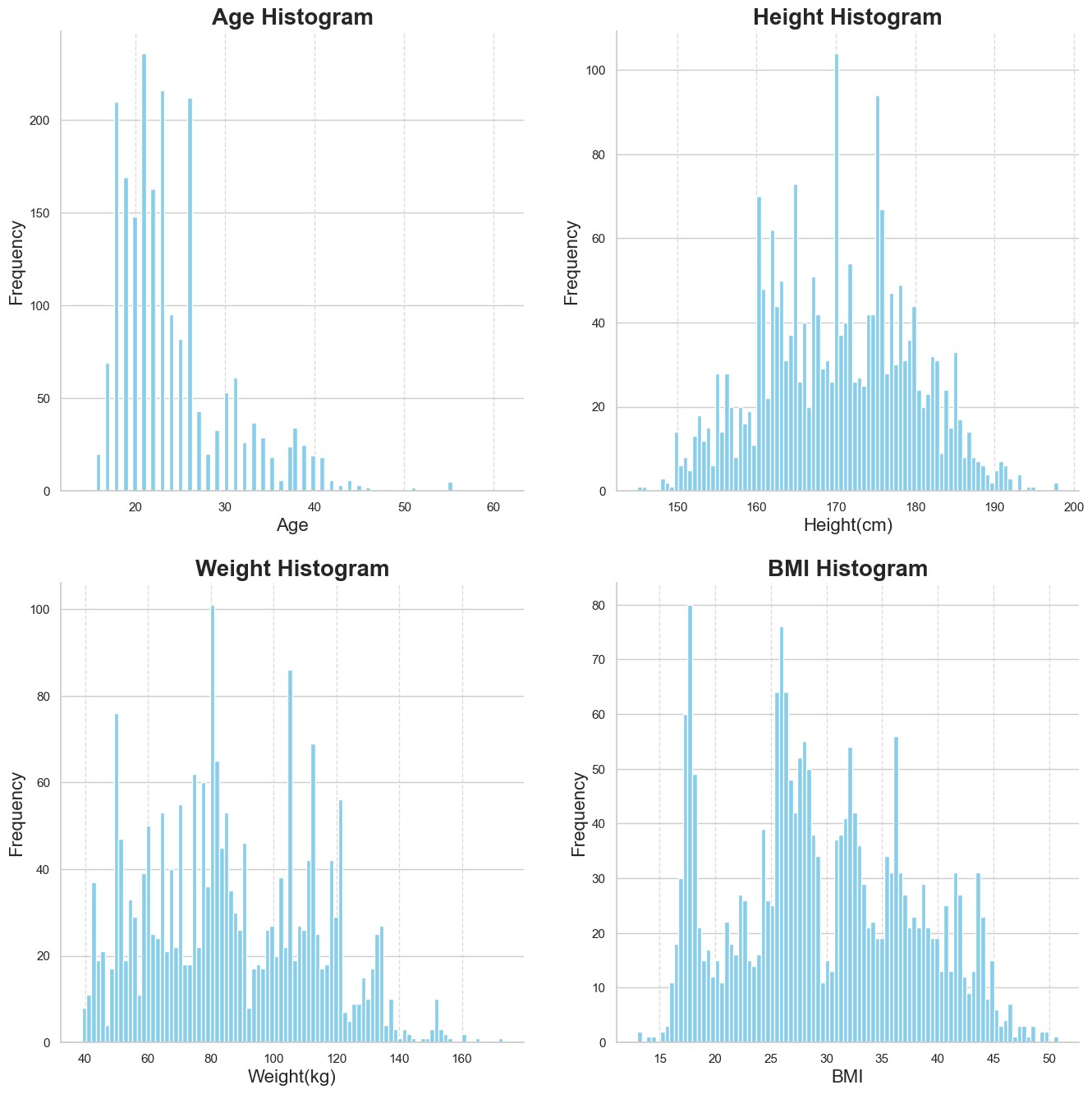

Age, Weight, and Height
The age distribution is right-skewed, indicating that the demographic of the dataset is primarily teenagers and working adults. Based on the cardiovascular risk graph, this suggests that most individuals with a higher risk of cardiovascular disease are younger.
The histogram shows that the distribution of height is a rather normal distribution with some spikes. The distribution of weight is slightly right skewed with some seemingly extreme weights. Paired with the age histogram, this may explain why individuals with a higher risk of developing cardiovascular risk are younger.
Finally, the BMI histogram denotes a multimodal distribution, as shown by the presence of multiple
peaks. There are peaks between 15 and 20, between 25 and 30, and between 30 and 40. This suggests that the dataset may represent several underlying subpopulations or distinct clusters with different BMI ranges.

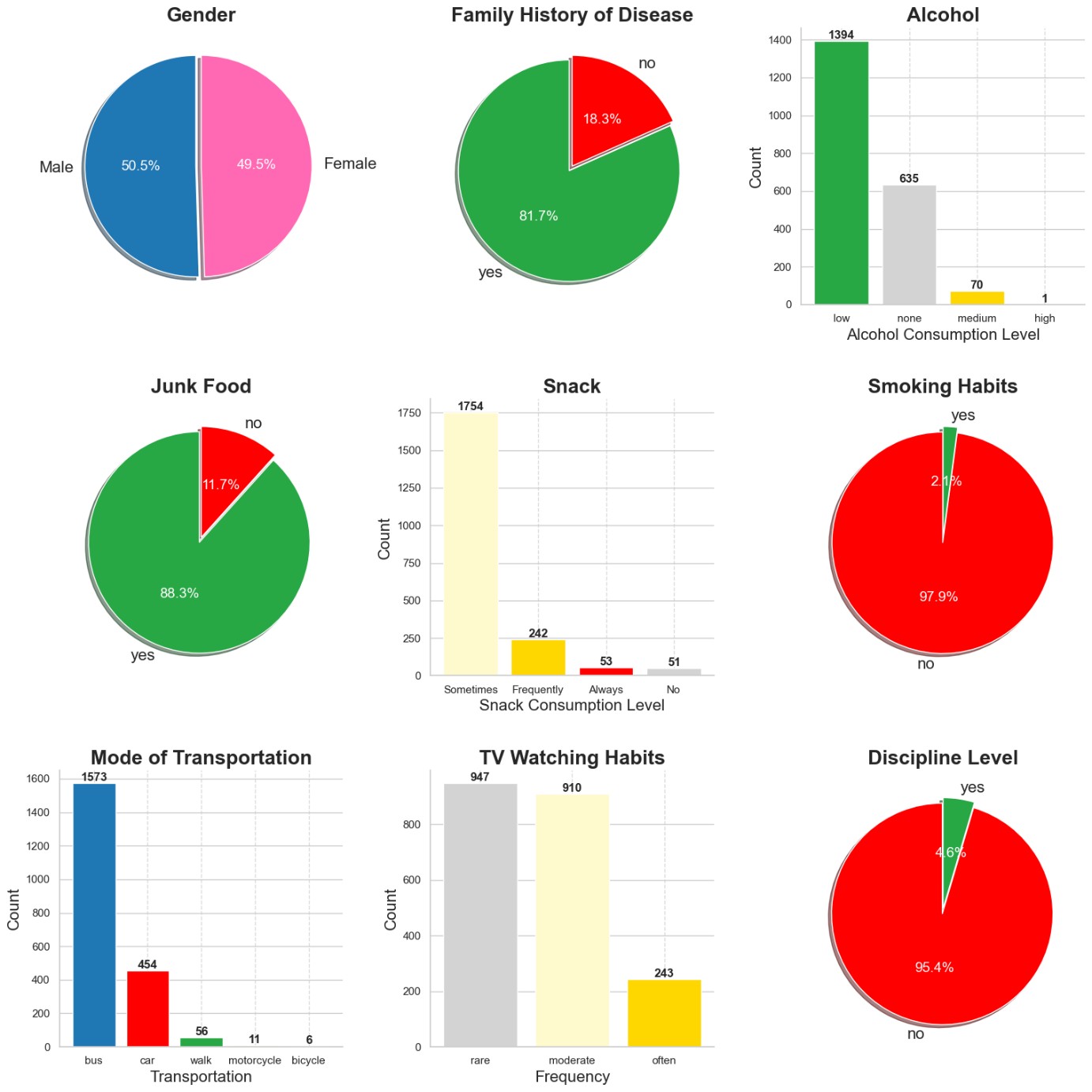

Lifestyle and Demographic
The data distribution for the gender feature is evenly distributed with 50.5% male and 49.5% female. This suggests that both genders are evenly represented in the dataset. This can minimise potential bias in the machine learning model, preventing the model from skewing
towards one gender over the other.
The majority of individuals — 81.7% — have a family member with cardiovascular disease, while only 18.3% have no such family history. Having a family history of cardiovascular disease is shown to elevate the risk factor.12
The alcohol feature shows that the low value significantly dominates the rest, followed by none. This suggests that the younger individuals in the sample tend to consume little to no alcohol. Alcohol is also known to elevate the risk factor, and the relatively low levels of alcohol consumption suggest that other factors are likely driving the risk factor.
It may be argued that low to moderate alcohol consumption is cardio-protective amongst apparently healthy individuals 3; however, this conclusion is made from some older studies which may have had methodological issues, attenuating the strength of the conclusion.
More modern research suggests that the risks of alcohol consumption often outweigh any potential benefits. 4
The large gap between the levels of consumption may introduce bias to the model.
The most popular form of transportation in the dataset is the bus, with 1,573 individuals using it. In contrast, only 6 individuals rely on bicycles. This disparity may suggest that the data was collected from urban areas where buses are a common mode of transportation, while cycling is less prevalent.
This could also provide insights into the overall physical activity levels of the sample, as reliance on buses may correlate with lower physical activeness compared to cycling.

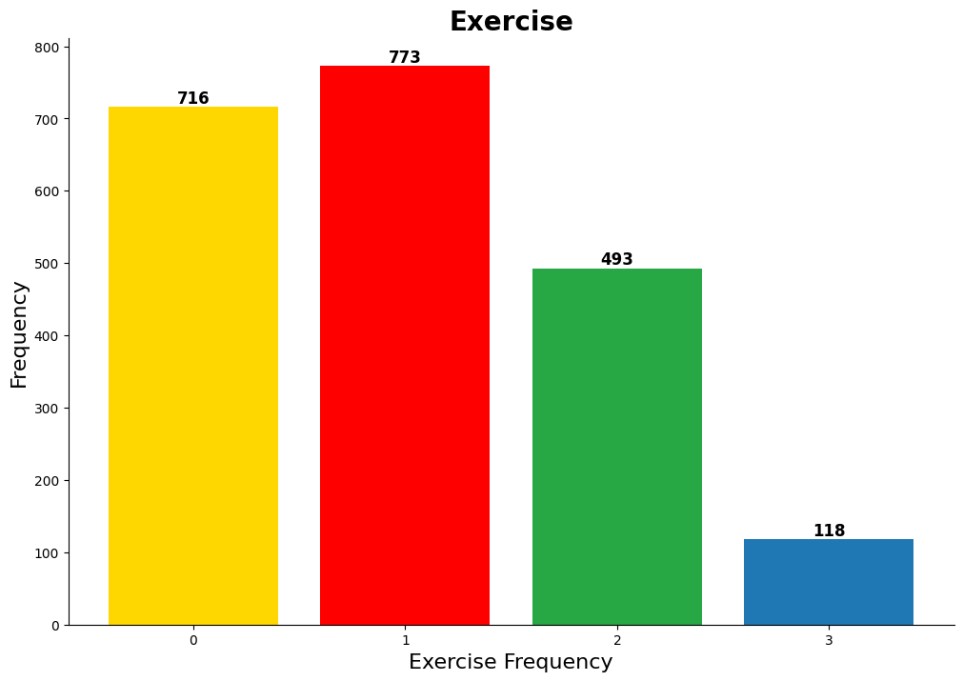

Rather than going off of a conjecture, the exercise bar graph shows that 716 individuals do not exercise, 773 individuals rarely exercise, 493 moderate exercises, and 118 regularly exercises.
Bivariate Analysis

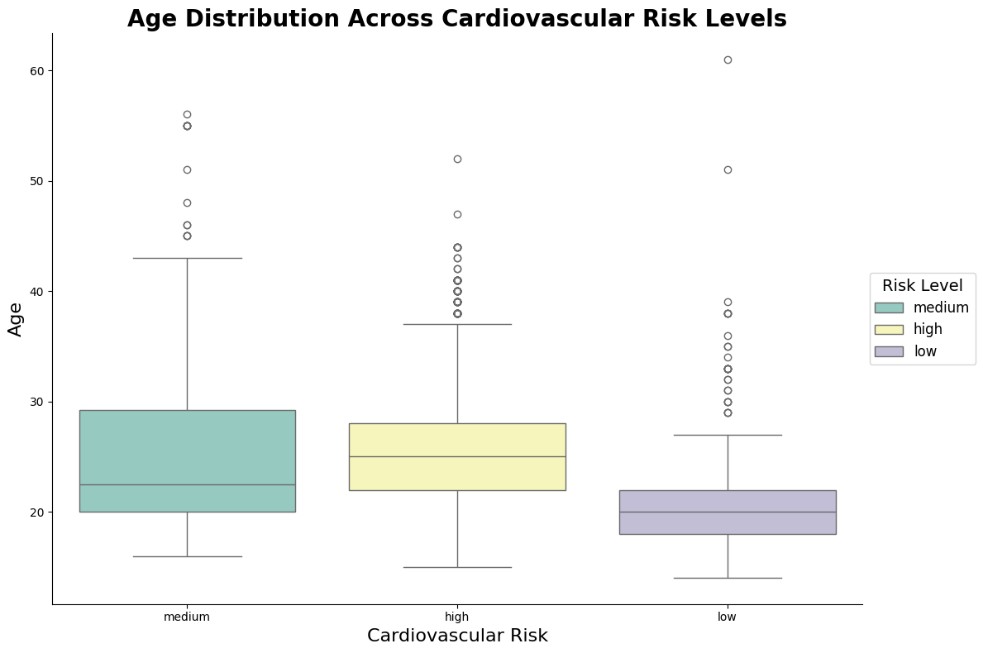

Age and Cardiovascular Risk Levels
The boxplot for the low-risk category shows that most individuals in this group are younger, with the median age being lower than the other categories. The range of ages in this group is also narrow, with a few outliers extending to older ages.
On the other hand, the medium-risk category displays a wider age range, with its median age positioned slightly higher than the low-risk boxplot. The distribution of age also suggests that individuals in this group are more diverse, with several outliers.
BMI and Cardiovascular Risk

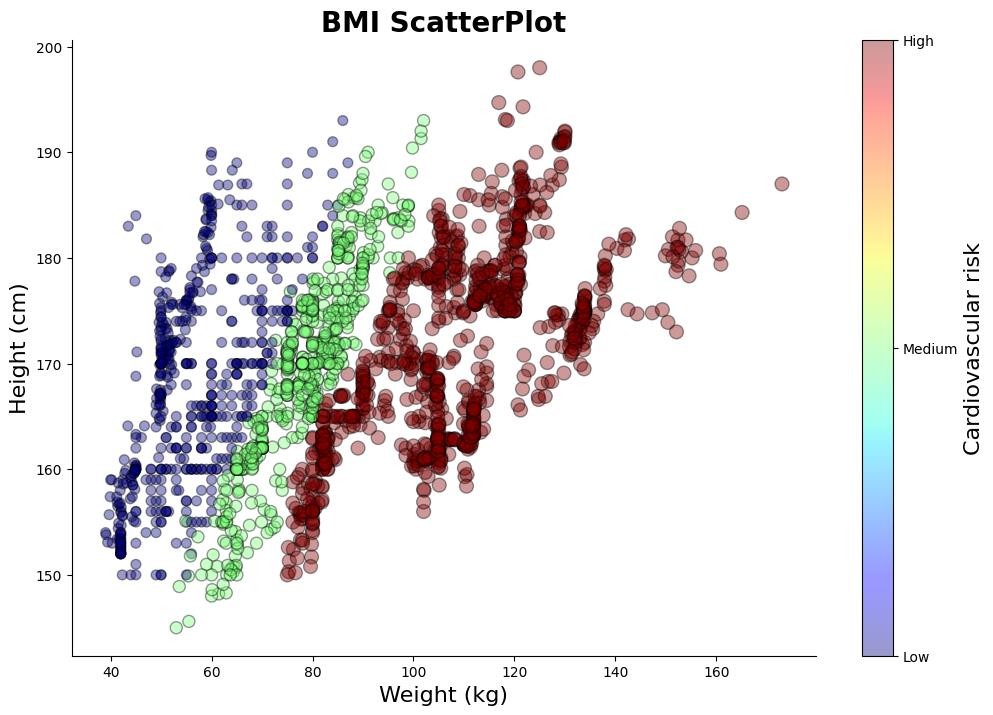

The scatter graph suggests correlations between BMI and cardiovascular risk. Based on the scatter graph, individuals with lower BMI have lower risks of developing cardiovascular diseases while individuals with higher BMI have higher cardiovascular risk.

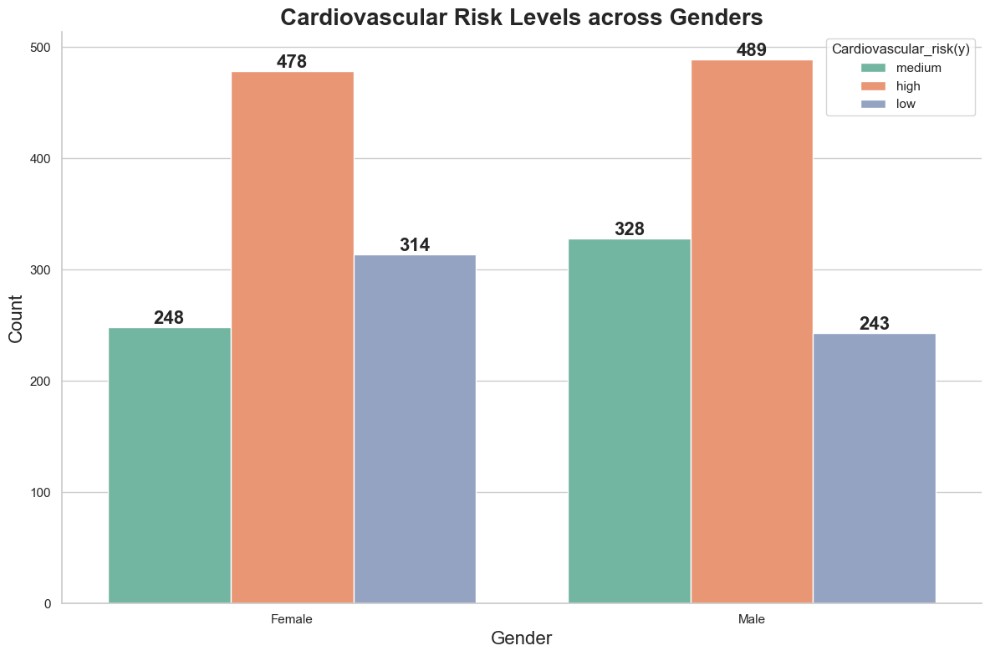

Gender and Cardiovascular Risk
The graph indicates that the spread of cardiovascular risk between the two genders is evenly distributed. Both females and males have the highest count in the high-risk category, with counts reaching 500, indicating that high cardiovascular risk is prevalent in both genders. However,
there are more medium-risk category counts in males compared to females. There are also lesser males with low-risk category compared to females.

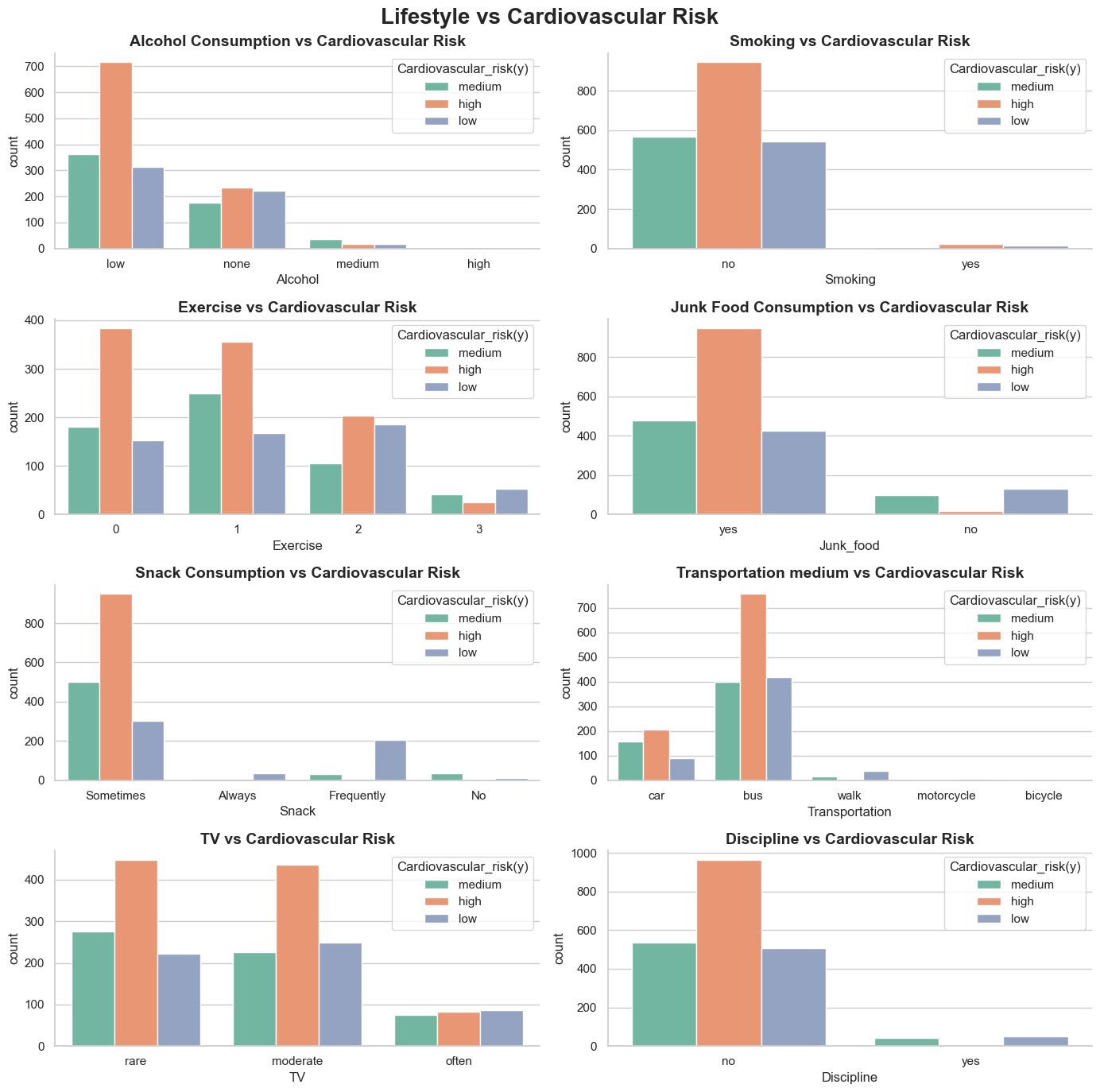

Lifestyle and Cardiovascular Risk
It can be observed that a significant portion of individuals who consume low volumes of alcohol have higher cardiovascular risks, indicating that there are other factors - activeness and diet - at play.
The same can be said to smoking, snack consumption rate, and tv as well; majority of individuals who do not smoke, indulge in snacks sometimes, and rarely watch tv fall in the high cardiovascular risk category.
Individuals who do not exercise have fall into high cardiovascular risk categories in contrast to individuals who regularly exercise.5 Individuals who take passive transportation have much larger cardiovascular risk as opposed to those who take active transportation.6
Majority of individuals who admitted to consuming junk food fall into high cardiovascular risk category.7Finally, individuals believe they do not have discipline have higher cardiovascular risk compared to those who do.
Potential Issues
The analysis reveals several patterns between lifestyle factors and cardiovascular risk, such as alcohol consumption, and cardiovascular risk levels. For instance, a significant proportion of individuals who consume low amounts of alcohol are categorized as having a high cardiovascular risk. Such findings may hold some truth, but the topic remains highly debated, and further research is necessary.
However, it can be conjectured that these observed relationships may be driven by the distribution of the data rather than representing genuine causal links between
the features and the label. This highlights the importance of careful consideration when interpreting correlations
in data, as they might be influenced by the distribution rather than a direct cause-and-effect relationship. To fix this issue, more data must be gathered to ensure that each group has equal representation and the relationship between the feature and label is more realistic and accurate.
Data Cleaning and Pre-processing
Due to the highly skewed distribution in numerical data (age, height, weight, and exercise), there are a lot of outliers in the dataset. Before removing outliers, height and weight are first combined into BMI as BMI gives a more meaningful measurement of body fat relative to height and weight. If outliers from weight and height are removed before combining into BMI, we may overlook how these two features interact. If observed separately, the values in weight and height may seem extreme but, combined, may look normal.
Snippet: Manipulating Features
# Combining Weight and Height to form BMIcardio_df['BMI'] = (cardio_df['Weight(kg)']/ np.square(cardio_df['Height(cm)']/100)).apply(lambda x:round(x,2))# Function to discretise agedef discretise_age(data:pd.DataFrame)->None:Â Â data['age_cat'] = pd.cut(data['Age'], bins = [13, 20, 25, 30, data['Age'].max()], labels=[1,2,3,4])
Snippet: Removing outliers
# Define a function to remove outliers using the IQR methoddef remove_outliers_iqr(df, column):Â Â Q1 = df[column].quantile(0.25)Â Â Q3 = df[column].quantile(0.75)Â Â IQR = Q3 - Q1Â Â lower_bound = Q1 - 1.5 * IQRÂ Â upper_bound = Q3 + 1.5 * IQRÂ Â return df[(df[column] >= lower_bound) & (df[column] <= upper_bound)]# Apply outlier removal for the numerical columnsnumerical_columns = ['Age', 'BMI', 'Exercise']# Removing outliers from the datasetcleaned_data = cardio_df.copy()for col in numerical_columns:Â Â cleaned_data = remove_outliers_iqr(cleaned_data, col)Â Â # Display the number of rows removed due to outliersremoved_rows = len(cardio_df) - len(cleaned_data)removed_rows, cleaned_data.head()
Output
(158, Gender Age Height(cm) Weight(kg) Family_history Alcohol Junk_food \ 1 Female 19 175.3 80.0 yes none yes 3 Female 23 165.0 70.0 yes low no 4 Male 23 169.0 75.0 yes low yes 5 Male 23 172.0 82.0 yes low yes 6 Female 21 172.0 133.9 yes low yes Vege_day Meals_day Snack Smoking Water_intake(L) Transportation \ 1 2 1 Sometimes no 2.65 bus 3 2 1 Sometimes no 2.00 bus 4 3 3 Sometimes no 2.82 bus 5 2 1 Sometimes no 1.00 bus 6 3 3 Sometimes no 2.42 bus Exercise TV Income Discipline Cardiovascular_risk(y) BMI 1 3 moderate 5551 no medium 26.03 3 0 rare 9451 no medium 25.71 4 1 often 17857 no medium 26.26 5 1 moderate 3114 no medium 27.72 6 2 moderate 8011 no high 45.26 )
Then, the dataset is divided into features and labels before splitting into training and test sets using the train_test_split method from sklearn. stratify = y_cardio_df is used to ensure that both training set and test set have equal rows of label data. The size of the test set is 20% of the entire dataset.

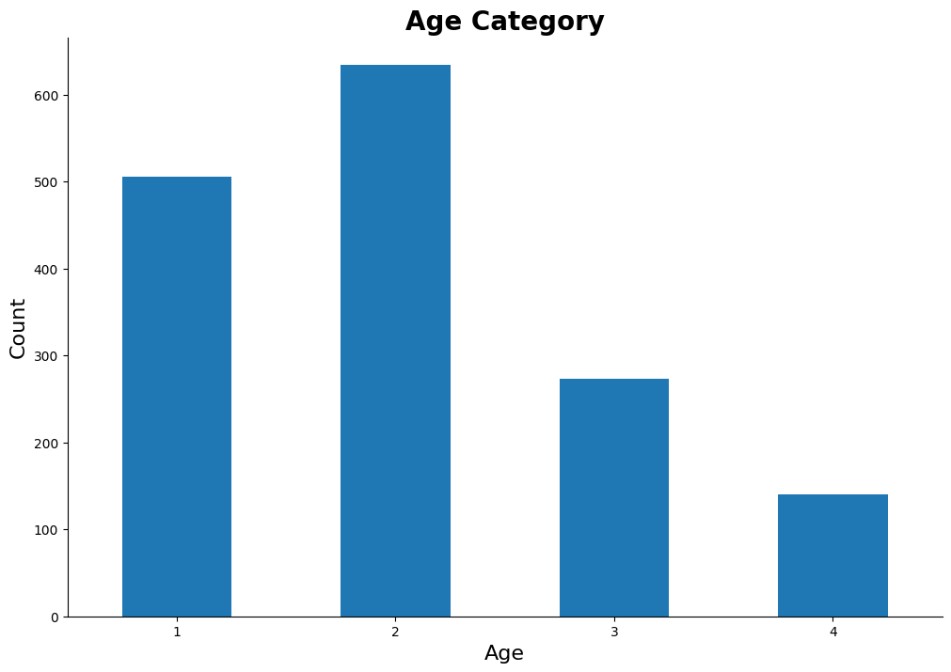

Age data remain right-skewed so, discretising them is beneficial to ensure each age group gets equal representation.
In our chosen features, there are 6 features with nominal data and 3 features with ordinal data. In the 6 features with nominal data, 5 – gender, family, junk food, smoking, and discipline - will be pre-processed with LabelBinarizer because their data consists of yes or no, or male or female. OneHotEncoder would not be suitable as it just adds unnecessary complexities when dealing with binary features. Transportation will be encoded with OneHotEncoder. OrdinalEncoder will be used on alcohol, tv, and snack. Finally, for better performance, cardiovascular risk will also be encoded with ordinal encoder.
Methodology
Model Training
Based on the dataset presented, this is a supervised, offline, multi-class classification problem. The models selected are, k-nearest neighbours, an extended logistic regression, and random forest. The main performance measure used to assess the models are confusion matrix,
precision, recall, F1 Score, and AUC-ROC graph.
K-fold cross validation is used when in training the model. This is done manually with StratifiedKFold to give us more control over the type of metrics to measure in assessing the performance of the model.
Side Note
Now that I’ve done it, StratifiedKFold wasn’t really necessary.
K-Nearest Neighbours
K-nn can handle multiclass classification problems. Additionally, k-nn works well with a relatively small dataset of only 1.9 thousand rows of data. K-nn is a non-parametric algorithm, meaning it does not assume any underlying data distribution. This makes them more versatile for various data types and distributions.
Predictions are made based on simple majority vote of the nearest neighbours of each point. The number of nearest neighbours to consider is important when classifying the output. A high number of neighbours to consider means the algorithm is more sensitive to the local structure, subtle patterns and variations in the data but, the is more likely to overfit while a lower number may give better generalization but risk underfitting. Additionally, to determine whether a point is to be regarded a neighbour, distance metrics are used. There are 3 common distance metrics to consider, Euclidean distance, Manhattan distance, and Minkowski distance.
Training the Model
The default hyperparameters for sklearn’s knn model are 5 numbers of neighbours, uniform weight, and Euclidean distance metric.
The result from the k-fold cross validation is quite promising.
Metrics after training on the entire training set:Accuracy: 0.9961365099806826F1: 0.9961367210034928Precision: 0.9961429103417135Recall: 0.9961365099806826
According to the confusion matrix, most misclassification occurs in the low-risk – 4 false negatives and 2 false positives - and medium-risk – 2 false negatives and 4 false positives - category.

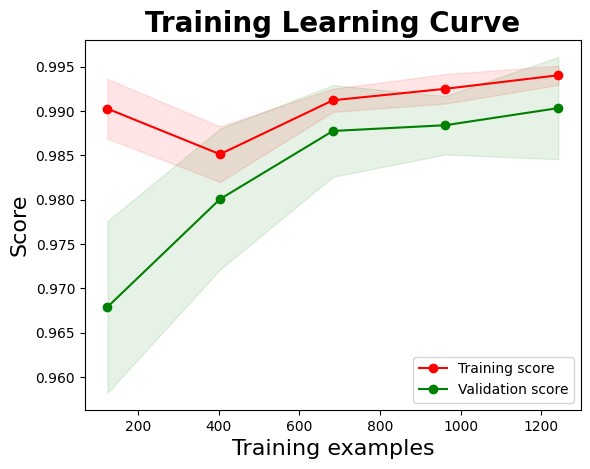

The learning curve shows that the training score starts high and remains consistent throughout, except for a small initial dip, before stabilising at a high level. Such performance indicates some overfitting initially. The validation score starts much lower than the training score but, as the number of samples increases, the validation score improves significantly, showing that the data generalises well as it sees more data. The gap between training score and validation score also decreases as the training examples increase, indicating improved generalization.
Logistic Regression
Logistic regression is naturally a binary classifier; however, logistic regression can be extended to handle multiclass classification.
In OvR, 3 binary Logistic regression model is trained, one for each cardiovascular risk - low-risk detector, medium-risk detector, and high-risk detector. Then, to classify an individual, the class whose classifier outputs the highest score is selected.
Training the Model
The initial parameters used to train the model are:
Snippet: Extended logistic regression
model = OneVsRestClassifier(LogisticRegression(solver='lbfgs', max_iter=5000, penalty='l2', class_weight='balanced'))
The result from the k-fold cross validation is quite promising.
Model evaluation after training with the training set:Accuracy: 0.9922680412371134Precision: 0.9922562076504403Recall: 0.9922680412371134F1 score: 0.9922596724505841
Based on the confusion matrix, the model makes the most misclassifications when attempting to predict medium-risk category with 7 false negatives and 5 true positives.

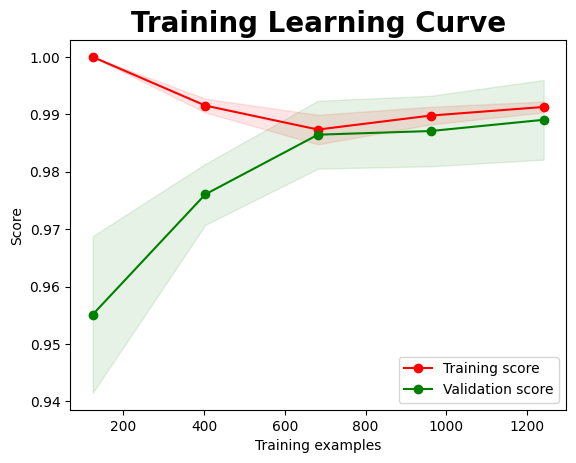

Similar to the training curve from the KNN model, the model initially overfitted, with a very high training score, but dips as the number of data introduced increases. The validation score starts out much lower than the training score but improves as more data is used, indicating the model’s improvement at generalisation. The gap between training score and validation score at the end does reduce, but it would still benefit from more data or fine-tuning to further close the gap.
The model’s performance on the validation set fluctuates more when examples are small as denoted by the wider green shaded area.
Random Forest
Random Forest is a machine learning algorithm can be used for classification or regression task, creating a collection of decision trees (forest), each trained on random subsets of the data. It performs well on small datasets by averaging multiple decision trees, which
reduces overfitting.
Moreover, its robustness to noisy data improves accuracy and stability, while its ability to manage multi-class classification makes it suitable for three-category task - low, medium, and high. This combination of simplicity, interpretability, and performance makes Random Forest
a strong option. In addition, random forest is helpful for feature selection. It ranks the importance of
each feature and help determine which features have the greatest impact on the prediction, making it useful in data analysis and interpretation.
Training the Model
The default settings include 100 decision trees, Gini impurity as the criterion for splitting, and no limit on tree depth, allowing the trees to grow until all leaves
are pure or contain fewer than the minimum number of samples required for splitting.
Based on the confusion matrix, the random forest model gave a perfect training result with zero misclassification across all three level of risks. As great as this is, this may indicate overfitting of the model.

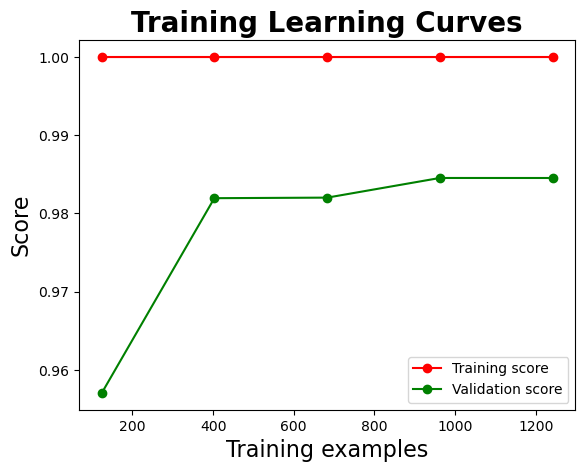

The training score remains 1.0 throughout the sample size, but the validation score changes. There is also an absence of a shaded area between the training and validation learning curves; this likely means that the generalisation gap of the model is small.
Model Testing
Before testing the model, the same pre-processing is done on the testing datasets.
Metrics after training on the entire training set:Accuracy: 0.9961365099806826F1: 0.9961367210034928Precision: 0.9961429103417135Recall: 0.9961365099806826
Comparing the two metrices, the performance of the model on unseen data is consistent with the performance on training data.
In comparison to the training confusion matrix, there is not much disparity in the performance. There are only 5 misclassifications that the model makes - misclassifying medium risk as low risk 5 times.

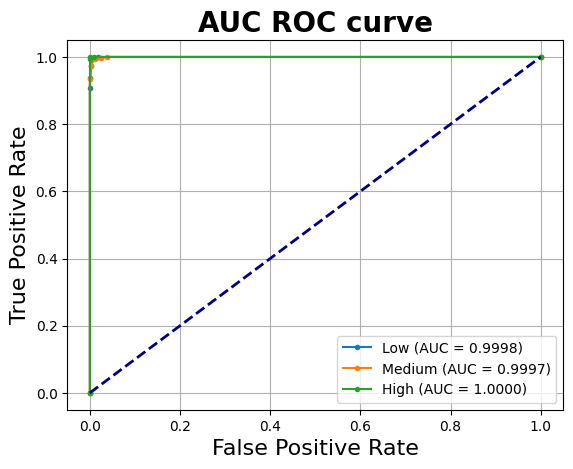

The AUC ROC curve show that the AUC for each level of cardiovascular risks is consistently reaching 1.000. This means that the model is capable of distinguishing the three classes apart from each other. The AUC for high risk being 1 tallies with the perfect prediction as shown in the confusion matrix, while there exists minor misclassification between low and high cardiovascular risk.
With the testing result being comparable to training result, this indicates that the model has not overfitted and learnt well.
Overall, based on the metrics, confusion matrix, and the AUC ROC curve, the model has not overfitted and is a good candidate for the problem.
Model evaluation after training with the training set:Accuracy: 0.9922680412371134Precision: 0.9922562076504403Recall: 0.9922680412371134F1 score: 0.9922596724505841
Comparing the two metrices, the performance of the model on unseen data is also consistent with the performance on training data.

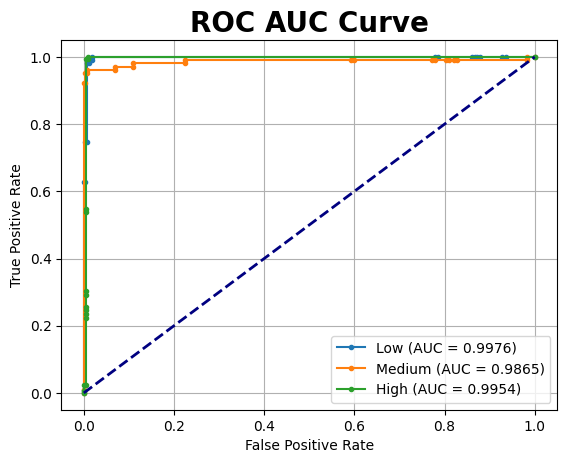

For the ROC AUC Curve, the model demonstrates a good performance in in distinguishing between
the three categories. However, there exists misclassification across all three level of cardiovascular risks.
Overall, based on the metrics, confusion matrix, and the AUC ROC curve, the model has not overfitted and is a good candidate for the problem.
The metrics dropped when the model is being used on unseen data, but still remains consistently high.

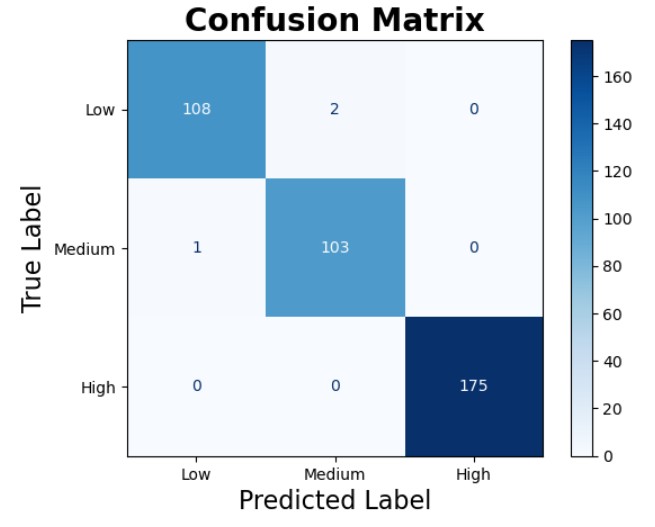

The confusion matrix for the test data shows that the
model performs well but not perfectly when applied to new data. Specifically, 108 instances of Low risk were correctly classified, with 2 misclassified as Medium and none as High. For the Medium risk category, 103 instances were correctly predicted, while 1 Low was misclassified. In the High-risk category, the model correctly classified all 175 instances with no misclassifications. While the misclassifications in the Low and Medium categories are
minimal, the overall performance remains very strong.

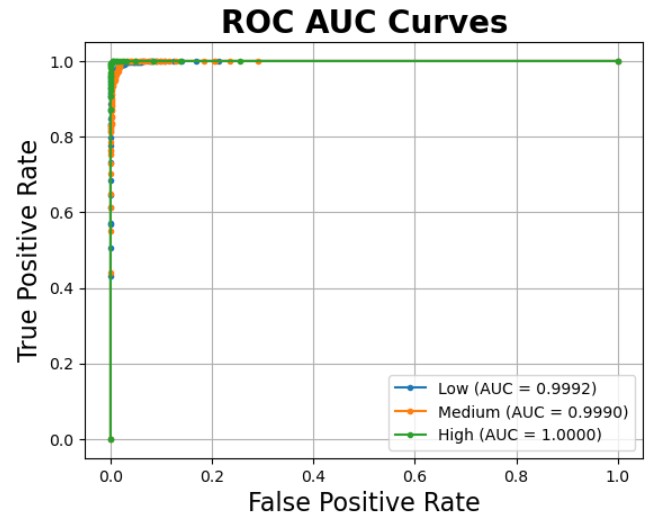

The ROC AUC curve shows nearly perfect discrimination between the risk categories. The area under the curve (AUC) values for Low, Medium, and High are 0.9992, 0.9990, and 1.0000, respectively. These near-ideal AUC scores indicate that the model has excellent predictive capabilities, with a very low false positive rate and a high true positive rate across all risk categories.
Overall, based on the metrics, confusion matrix, and the AUC ROC curve, the model has not overfitted and is a good candidate for the problem.
Model Fine-Tuning
GridSearch is used for fine-tuning the model.
K-Nearest Neighbours
2 main hyperparameters – n_neighbours and distance metric - will be considered during fine-tuning. The fine tuning will be done with GridSearch. After fine tuning, it is found that the best KNN model uses Manhattan distance metric and considers 8 nearest neighbours.

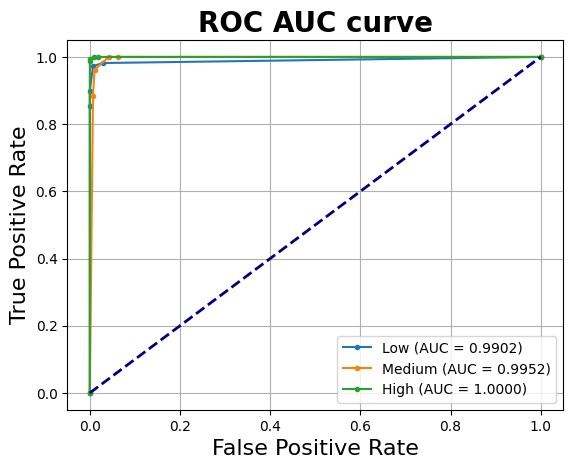

F1 score improves slightly with the new, fine-tuned model but precision dips slightly.
According to the fine-tuned model, the most misclassifications still happen in mediumďżľrisk category and low-risk category with 1 false negative and 4 false positives. However, looking at the ROC AUC curve, the AUC for low-risk category dipped but improved slightly for medium risk category. Overall, the performance of the fine-tuned model improved with a rather negligible amount.
Logistic Regression
During fine tuning stage, we are focusing on five main hyperparameters:
regularization strength
penalty
maximum iterations
solver options
class weight
Since the model is extended to One-vs-Rest (OvR), only the solvers that support this multiclass classification are used.
Additionally, since the dataset contains only 1.9k samples (after trimming), which is considered a rather small dataset, sag and saga solvers are not used, because these solvers are better suited for larger datasets.
Since the solvers used support separate penalties, fine-tuning is done separately for both solvers.
liblinear can support both l1 and l2 penalty while lbfgs can only support l2 penalty.
After performing fine tuning, it is shown that the best parameters to form the best logistic regression model are:

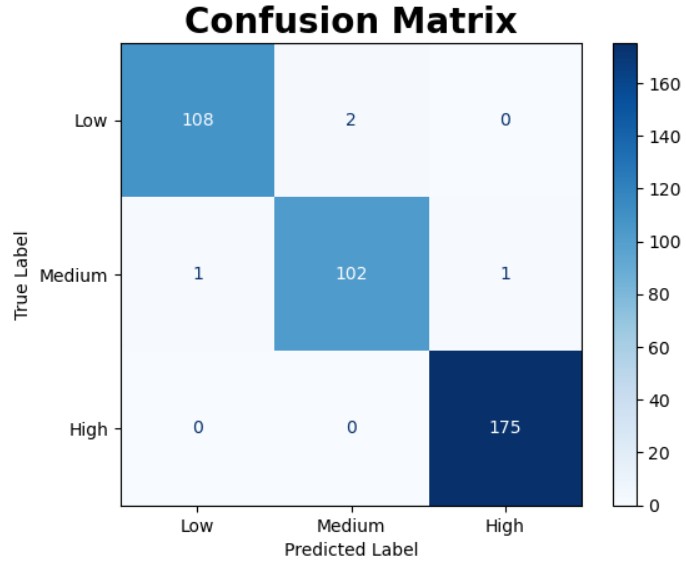

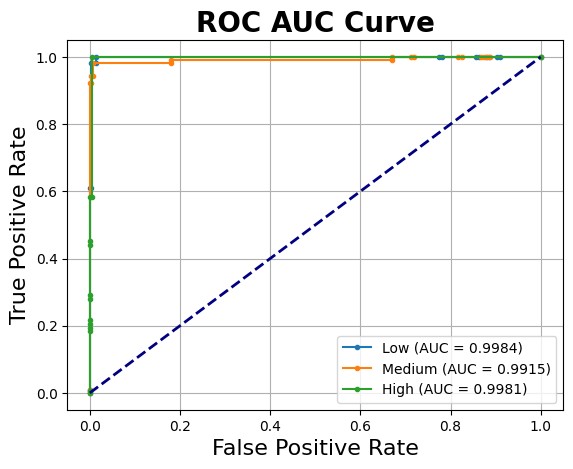

The Fined Tuned Confusion Matrix is similar to the Testing Confusion Matrix. Based on the ROC AUC Curve, there is a small improvement in the model’s ability to differentiate
these 3 categories. However, for the low-risk category continues to have the lowest score among the 3 categories.
The best parameter for the other solver, liblinear, are:
C: 0.1
max_iter: 5000
penalty: l1
solver: liblinear
class_weight: balanced.
However, this version does not perform as well as the former.

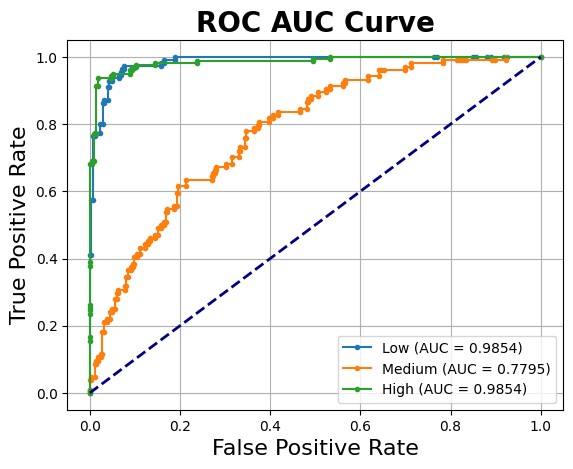

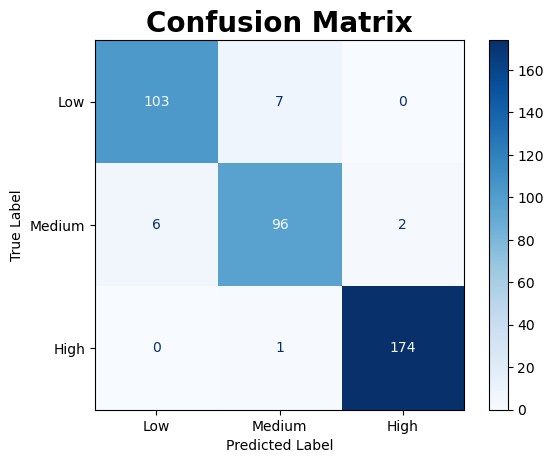

The model makes the most mistakes in distinguishing between low and medium categories. The ROC AUC curve shows that the model has a harder time predicting mediumďżľrisk category compared to predicting low-risk or high-risk categories. According to the confusion matrix, 7 false positives are made and 6 false negatives are made when classifying medium-risk category.
Random Forest
The fine-tuning involves evaluating 576 different combinations of parameters, using 5-fold cross-validation, which resulted in a total of 2,880 model fits.

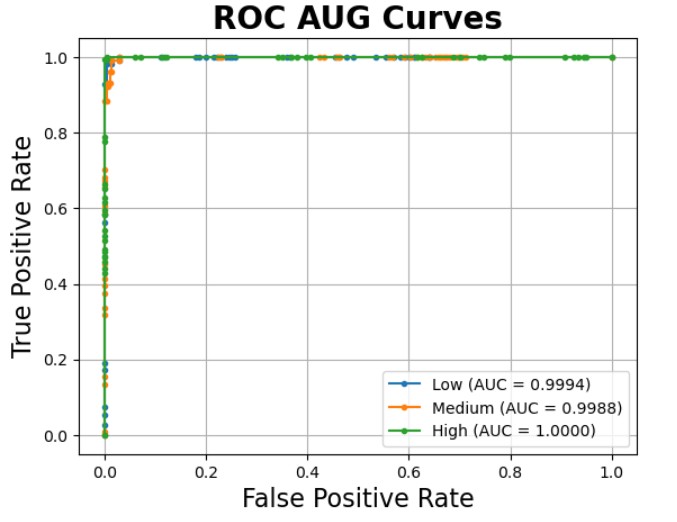

The fine tuned confusion matrix remains the same as the testing confusion matrix, while the ROC AUC scores for tunned shows near-perfect performance. However, there is a slight variation in the AUC values between the two testing
scenarios. The AUC for the Low category slightly increased from 0.9992 to 0.9994. Conversely, the AUC for the Medium category decreased from 0.9990 to 0.9988. The AUC for the High category remains consistently perfect at 1.0 in both cases, indicating exceptional performance in distinguishing the High class from the others across both tests.
Results and Findings
According to the fine-tuned version of the each model,
According to these metrics, the random forest model performs the best with the highest values across all metrics, followed by logistic regression model with lbfgs solver and k-nn comes in last. The logistic regression model with “liblinear” solver performs the worst amongst all 4, albeit recording values above 0.9.
According to the confusion matrices, random forest makes the least mistakes in predicting cardiovascular risks whereas logistic regression with liblinear solver makes the most mistakes. Nonetheless, all of these models have something in common, most misclassifications in prediction happens between low-risk and medium-risk categories compared to high-risk categories. This may be attributed to to the uneven distribution – the domination of high-risk category - of the cardiovascular risks in the dataset, leading to poorer performance on the minority classes. This may also be the reason as to why liblinear solver performs so poorly; it is more sensitive to the distribution of classes.

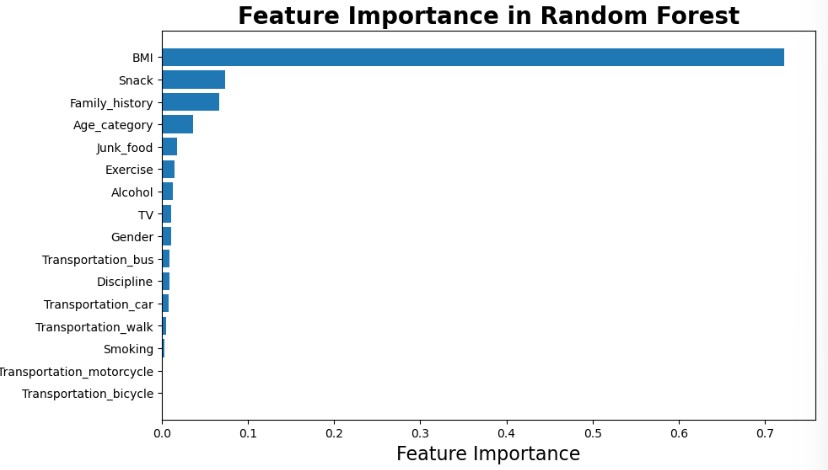

Feature Importance
According to random forest,
Feature
Importance
BMI
0.722390
Snack
0.073774
Family_history
0.066922
Age_category
0.036632
Junk_food
0.017905
Exercise
0.014685
Alcohol
0.012645
TV
0.010880
Gender
0.010778
Transportation_bus
0.008732
Discipline
0.008573
Transportation_car
0.007792
Transportation_walk
0.004583
Smoking
0.003164
Transportation_motorcycle
0.000376
Transportation_bicycle
0.000170
BMI is the most important factor in predicting cardiovascular risk, with an importance
score close to 0.75, indicating it has a major influence on the model’s performance, while other features seem to play very minor role.
Discussion and Conclusion
Strength and Weakness
K-Nearest Neighbours
Strengths
It is a simple model that is easy to implement and understand. No assumption is made about the distribution of the data, making it useful for data that does not follow standard distributions.
Weakness
K-nn can be affected by the dimensionality of data, particularly, datasets with a lot of features. As the number of features grow, the volume of the space grows, causing the available data points to be farther apart from each other. This makes it difficult to find meaningful nearest neighbours, as there may be fewer neighbouring points within a given distance. Furthermore, as the number of dimensions increases, the distance between any two points tends to become more uniform due to the diminishing influence of any single dimension.
Logistic Regression
Strengths
Logistic regression is a powerful and easy implement model that uses probabilistic interpretation of classification. It works well with linearly separable data and can handle
multiple class through the methods such as multinomial or one-versus-rest (OVA) regression. At the same time, it has L1 and L2 techniques to be regularized to address overfitting issue.
Weakness
However, logistic regression has a few main limitations. It assumes a linear relationship between the features and the outcomes. This means that it might not fit real- world
data that comes with more complex pattern. Moreover, it is not suitable for predicting continuous values and classify non-linearly separable data.
Random Forest
Strengths
Random Forest classification model can be an effective choice for analysing and predicting results especially for a dataset with less than 2.1k rows and 17 features. This method utilizes an ensemble of decision trees to make predictions based on various feature combinations, significantly reducing the risk of overfitting. One of the main strengths of it is ability to evaluate feature importance, which helps determine which features have most significant impact on predictions.
Weakness
Random Forest model’s complexity can result in longer computation times, particularly as the size of the dataset or the number of tress increase. This may be a limitation when working with larger or more computationally demanding task.
